Tamiya 58647 1/10 RC M-07 Concept Chassis Kit FWD M-Chassis Touring Car
Sale price
$198.87
Regular price
$260.00

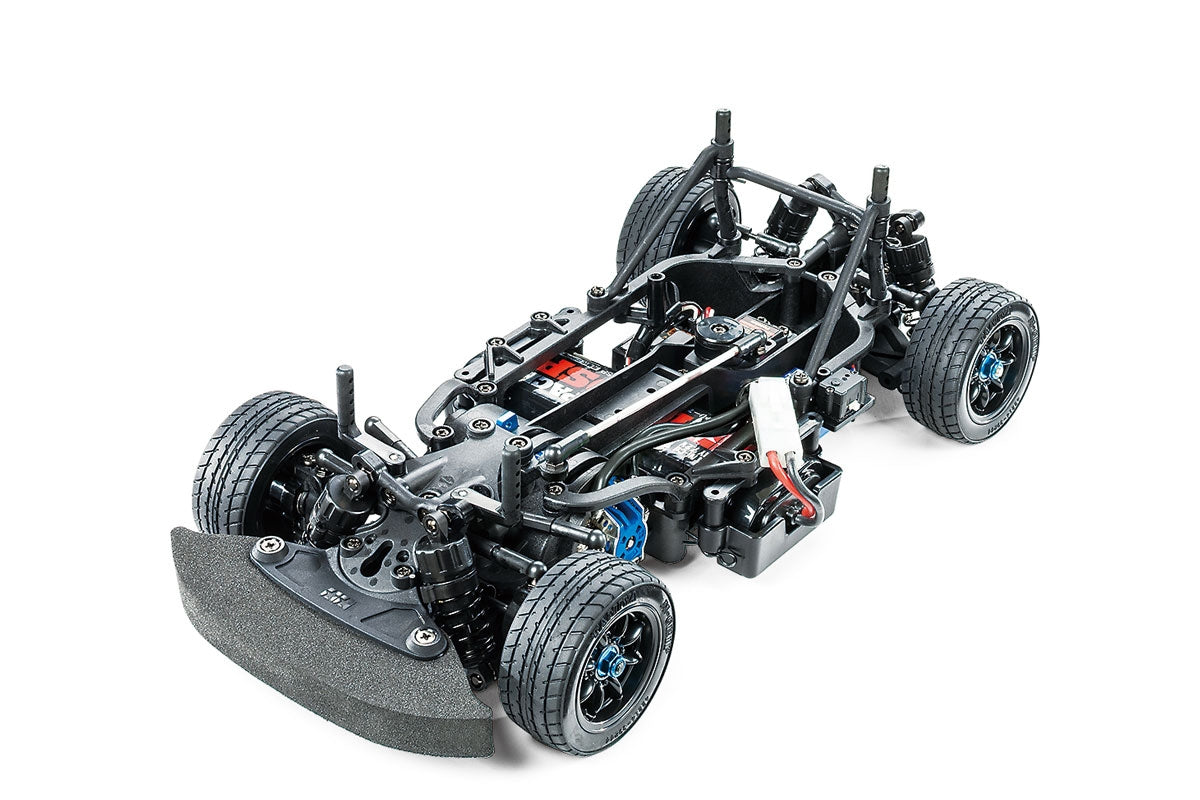

Ths is the highly competitive Tamiya 58647 1/10 scale M-07 Concept Front-Wheel Drive (FWD) on-road racing chassis kit. Engineered specifically for track performance, the M-07 is constructed around an ultra-rigid, one-piece monocoque frame with an integrated upper deck layout. It is widely celebrated in M-chassis racing communities for its crisp feedback, exceptional stability, and hassle-free maintenance. The chassis can be built to either a 225mm (Medium) or 239mm (Large) wheelbase configuration simply by altering the rear suspension orientation.
Key Features
- Rigid Monocoque Design: One-piece molded composite lower deck and upper frame elements deliver incredible rigidity.
- Adjustable Wheelbase: Assembles in either Medium (225mm) or Large (239mm) setups to accept a wide variety of Tamiya M-chassis bodies.
- Race-Spec Drivetrain: Equipped with full ball bearings, an oil-filled gear differential unit, and universal front drive shafts right out of the box.
- Long-Arm Suspension: Uses dedicated long suspension arms coupled with C.V.A. oil-filled shocks for ideal leverage and traction.
- Easy Maintenance: Features an split-deck style setup where the front oil differential can be removed completely from the underside with minimal disassembly.
- Electronics Integration: Natively accommodates low-profile steering servos and standard square-shaped (IFMAR-regulation) LiPo battery packs.
What’s Included in This Base Kit
- Full unbuilt Tamiya 1/10 M-07 Concept Chassis Kit
- CVA Oil-Filled Shocks & Springs
- High-Torque Servo Saver
- Full Sealed Ball Bearing Set
- Detailed Step-by-Step Instruction Manual
Required to Complete (Not Included in Base Kit)
- 1/10 M-Chassis Compatible Body Shell
- M-Chassis Tires and Wheels
- 540-Sized Electric Motor
- Electronic Speed Control (ESC)
- 2-Channel RC Transmitter & Receiver System
- Low-Profile Steering Servo
