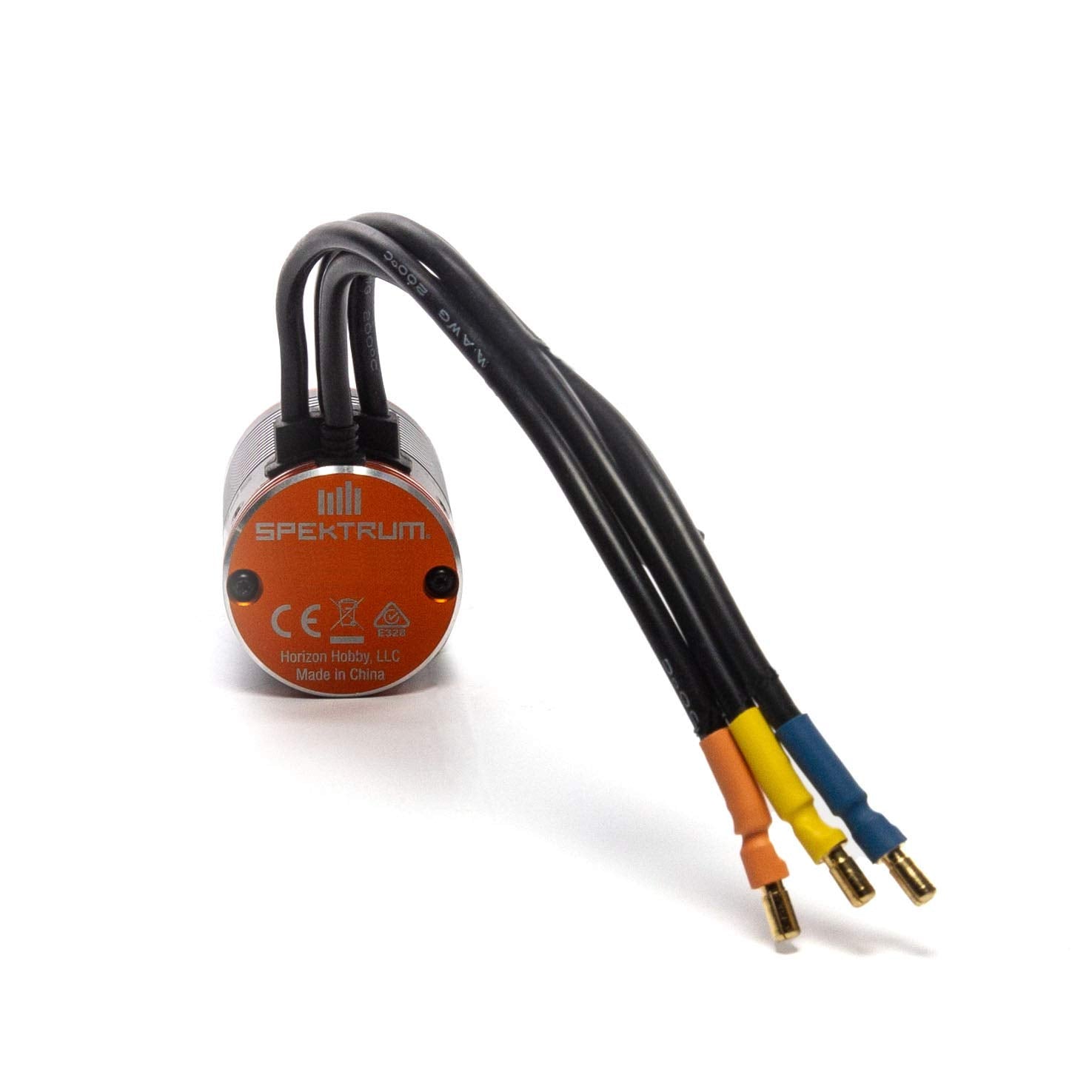

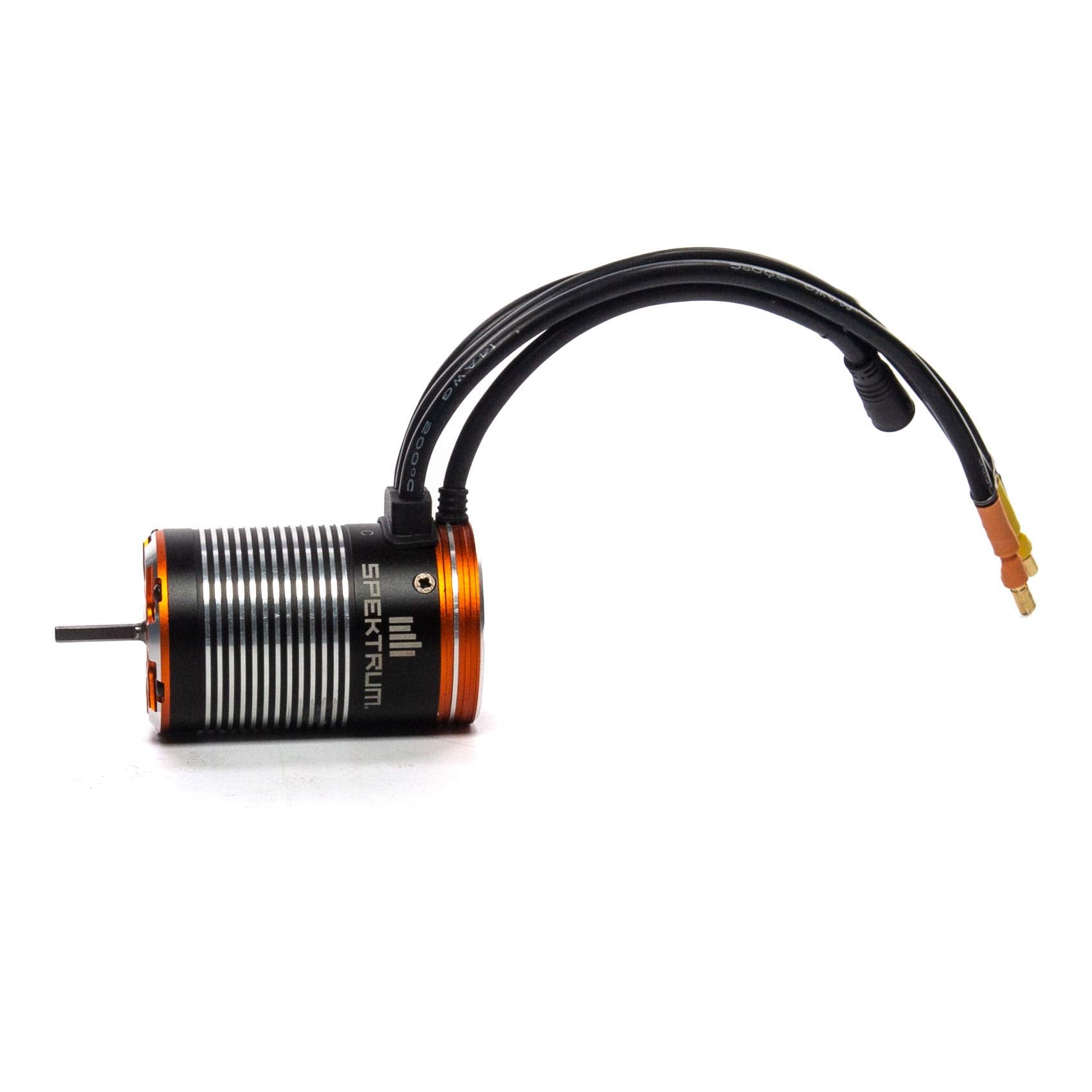

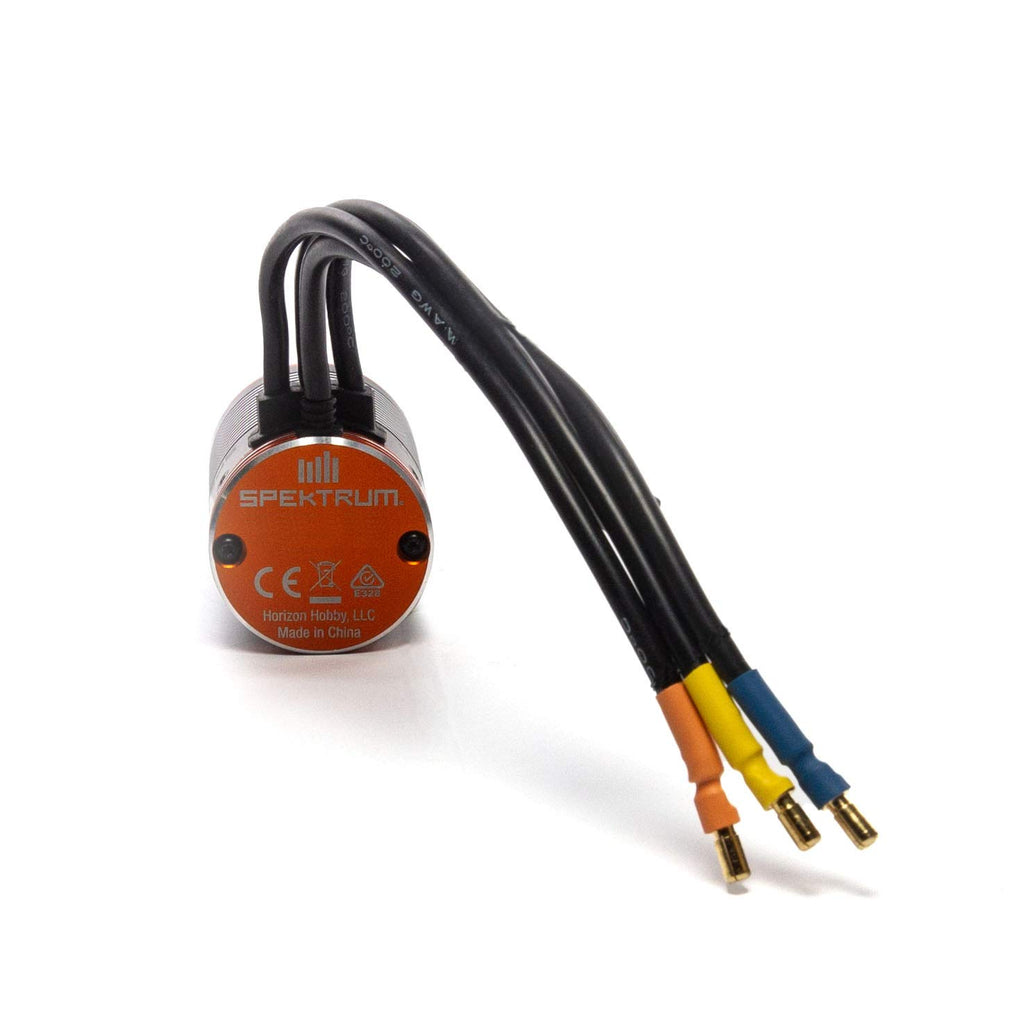

Spektrum SPMXSM3000 Firma 1400Kv Sensored Brushless Crawler Motor 1/10

Upgrade your 1/10 scale crawler, rock racer, or trail truck with the Spektrum Firma 1400Kv Sensored Brushless Crawler Motor. Designed for smooth low-speed control and high-torque crawling performance, this motor provides precise throttle response, excellent efficiency, and reduced cogging compared to traditional sensorless brushless systems.

The SPMXSM3000 is an ideal upgrade from a standard 540 brushed motor, using the same general mounting pattern while delivering the benefits of modern brushless technology. It is designed to run with the Spektrum Firma 60A Sensored Brushless Smart Crawler ESC.

Features

• Genuine Spektrum Firma brushless motor
• MPN: SPMXSM3000
• UPC: 605482725627
• 1400Kv low-speed torque motor
• Sensored brushless technology for ultra-smooth crawling
• Designed for 1/10 scale crawlers, rock racers, and trail trucks
• Excellent low-speed throttle control
• 4-pole / 8-magnet rotor design
• CNC-machined aluminum motor housing
• High-purity copper windings
• Precision ball bearings
• Hardened steel 3.175mm (1/8") output shaft

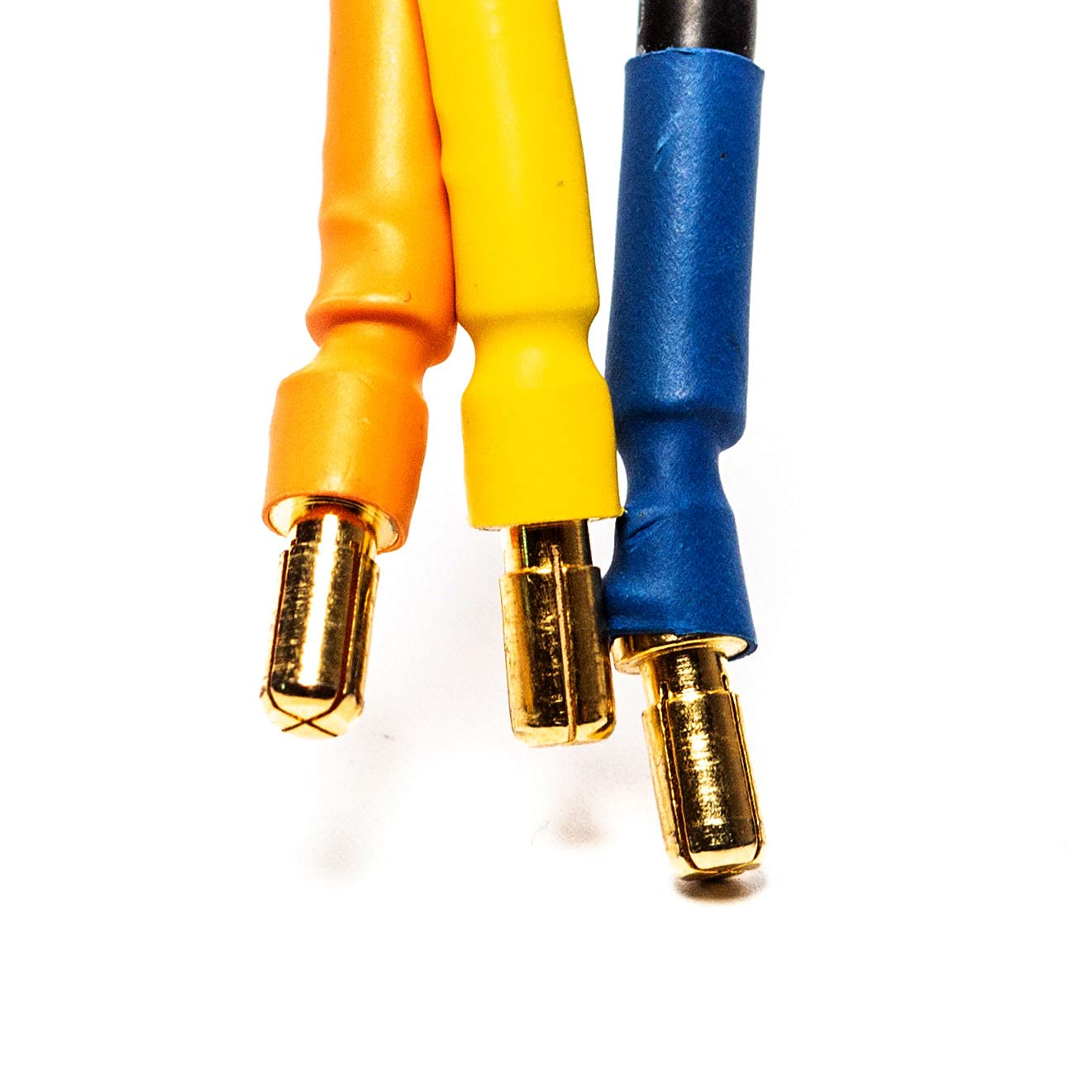

• Pre-installed 4mm gold-plated bullet connectors

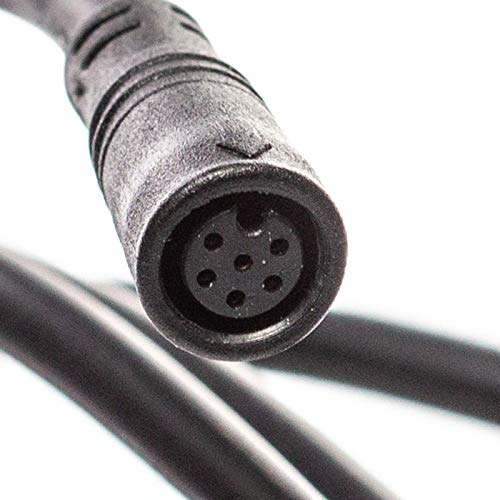

• Waterproof sensor wire with locking plug

Specifications

• Brand: Spektrum
• Series: Firma
• MPN: SPMXSM3000
• UPC: 605482725627
• Motor Type: Sensored Brushless
• Scale: 1/10
• KV Rating: 1400Kv
• Rotor: 4-pole / 8-magnet
• Input Voltage: 2S–3S LiPo (7.4V–11.1V)
• Continuous Current: 25A
• Shaft Diameter: 3.175mm (1/8")
• Connector: 4mm Bullet
• Outer Diameter: Approx. 36mm
• Length: Approx. 58mm
• Water Resistant: Yes

Compatibility

Recommended for:

• Axial SCX10 II / SCX10 III
• Axial Capra
• Element RC Enduro
• Vanquish trail trucks
• 1/10 rock crawlers
• Trail rigs
• Rock racers

Recommended ESC pairing:

• Spektrum Firma 60A Sensored Brushless Smart Crawler ESC (SPMXSE1060)

Package Includes

• (1) Spektrum SPMXSM3000 Firma 1400Kv Sensored Brushless Crawler Motor

Condition

• Brand New
• Factory Sealed
• Never Used

Item Specifics

• Brand: Spektrum
• MPN: SPMXSM3000
• UPC: 605482725627
• Type: Brushless Motor
• Motor Type: Sensored Brushless
• KV: 1400Kv
• Scale: 1/10
• Application: Rock Crawler / Trail Truck
• Battery Compatibility: 2S–3S LiPo
