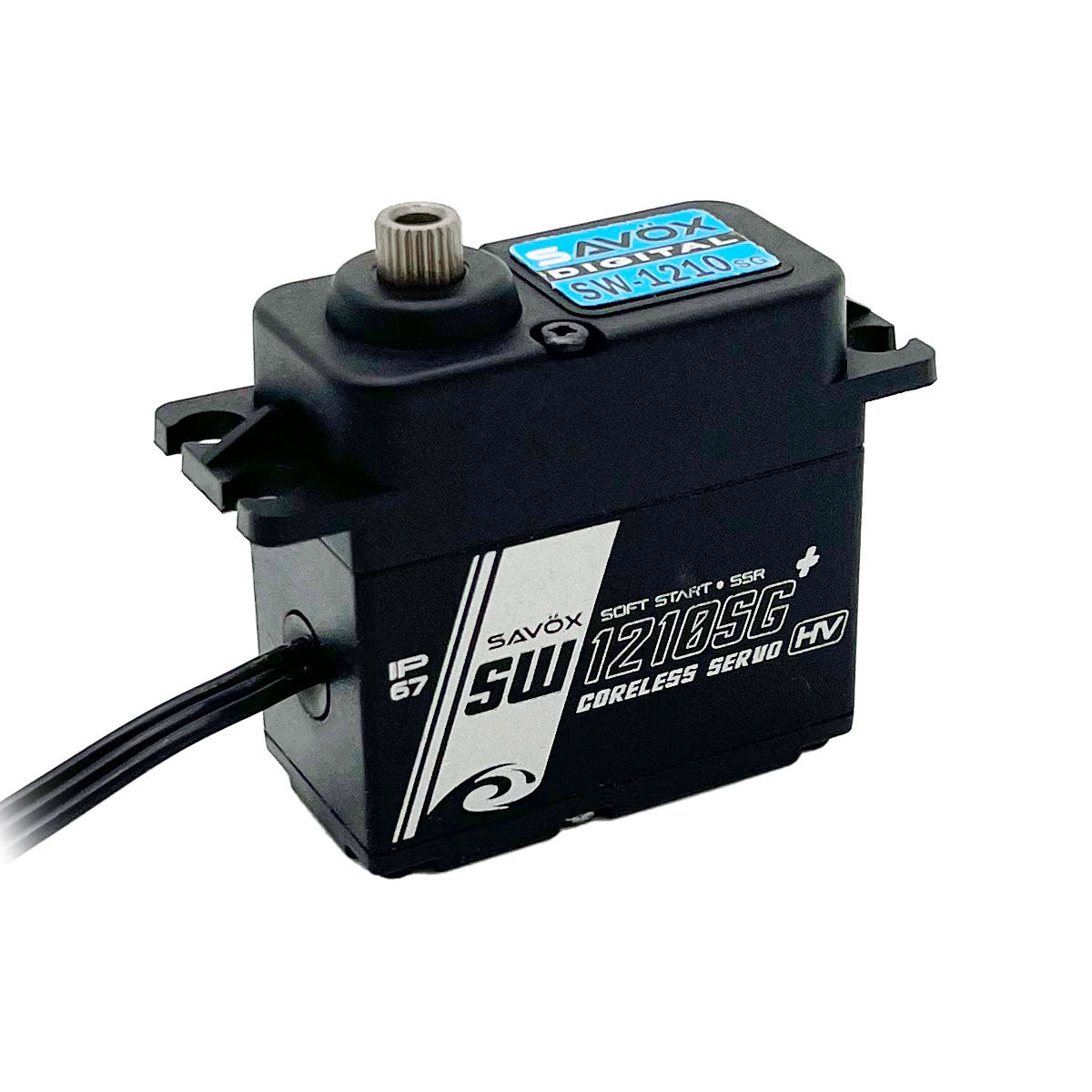

Savox SW1210SGP-BE Waterproof HV Coreless Digital Servo Black Edition

The Savox SW1210SGP-BE Black Edition is a high-torque, waterproof, high-voltage digital servo designed for demanding RC cars, trucks, crawlers, and boats. Featuring a coreless motor, specialized steel gears, and a hybrid aluminum/composite case, this servo delivers powerful and precise steering performance in challenging conditions.

The Black Edition finish provides a clean, all-black appearance, while Soft Start technology helps reduce sudden movement when the servo powers up.

Features:

• Brand: Savox

• Part Number: SW1210SGP-BE

• Black Edition finish

• Coreless digital motor

• Specialized steel gears

• Waterproof IP67-rated construction

• High-voltage operation

• Soft Start technology

• Sanwa SSR compatibility

• Hybrid aluminum/composite case

• Dual ball bearings

• Standard-size, tall-profile servo

• 25-tooth output spline

Specifications:

• Operating voltage: 6.0–8.4V

• Torque at 6.0V: 277.7 oz-in (20 kg-cm)

• Torque at 7.4V: 444.4 oz-in (32 kg-cm)

• Torque at 8.4V: 513.8 oz-in (37 kg-cm)

• Speed at 6.0V: 0.15 sec/60°

• Speed at 7.4V: 0.13 sec/60°

• Speed at 8.4V: 0.12 sec/60°

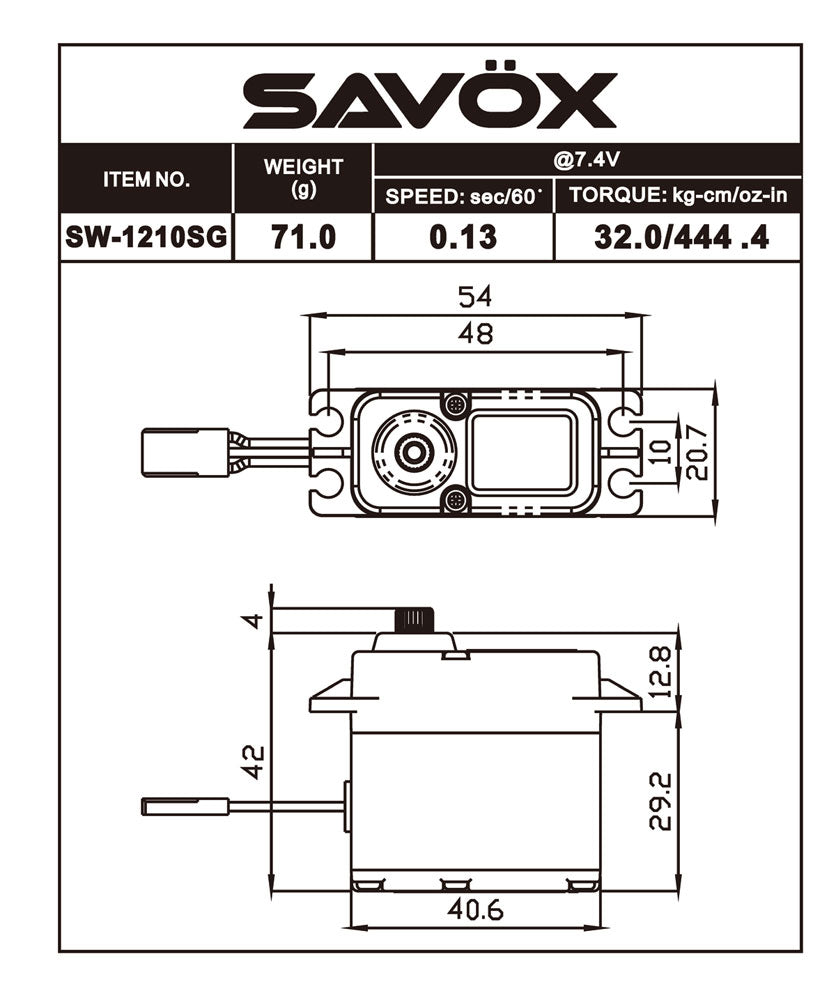

• Dimensions: 40.76 × 20.74 × 42 mm

• Weight: 71 g

• Connector: JR-style

• Cable length: Approximately 450 mm

Applications:

• RC rock crawlers and scale trucks

• Monster trucks

• Off-road RC vehicles

• RC boats

• Other applications requiring high torque and waterproof protection

Package Includes:

• (1) Savox SW1210SGP-BE digital servo

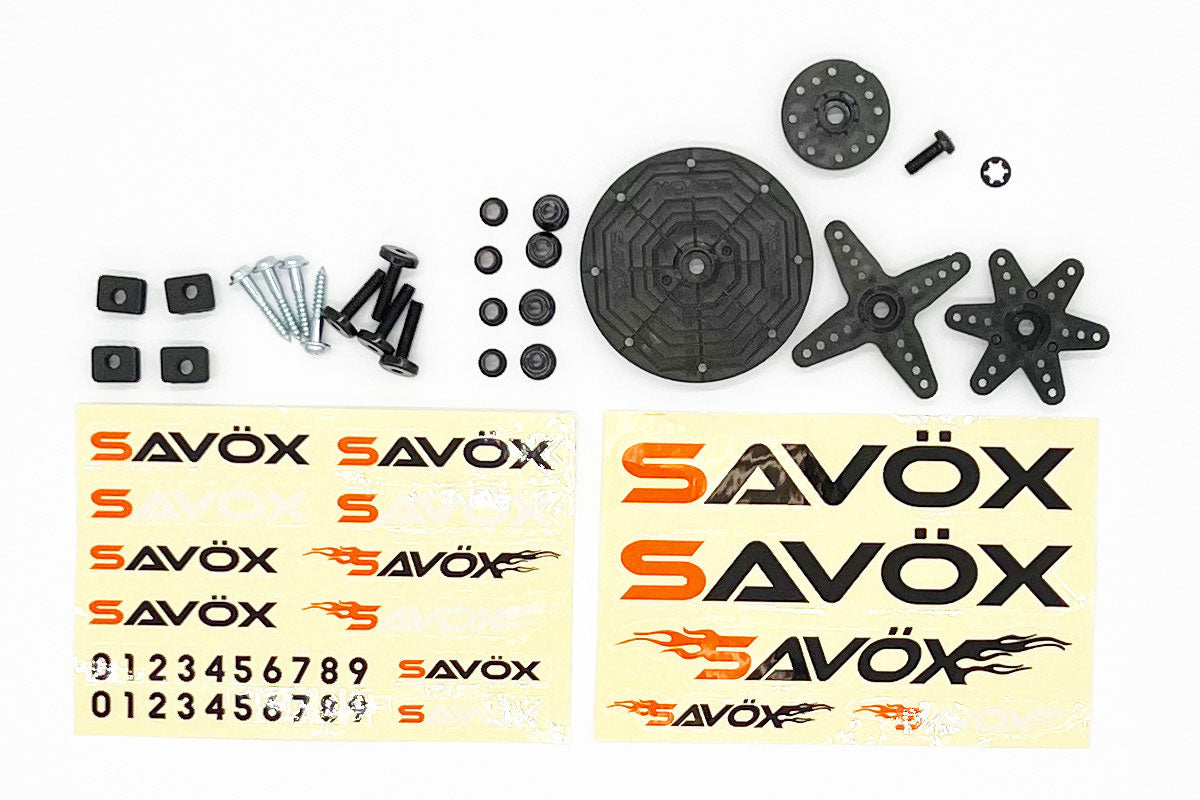

• Servo arms and mounting hardware

Please verify servo dim
