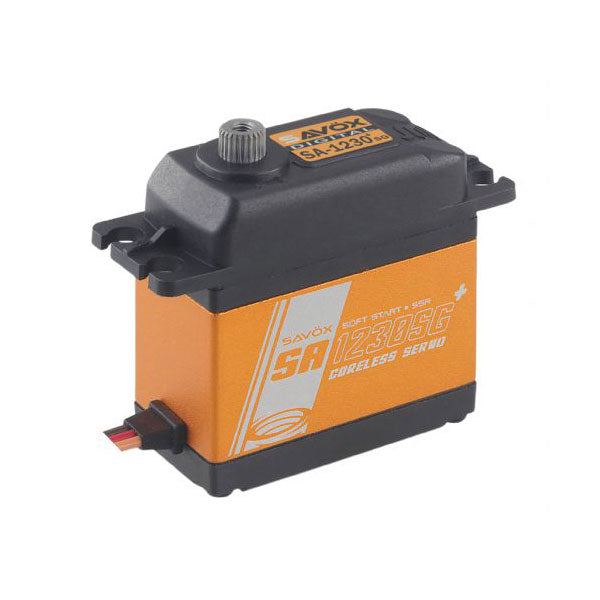

Savox SA1230SGP Coreless Digital Servo Soft Start Steel Gear 500oz @ 6V

The Savox SA1230SGP Plus is a high-torque, standard-size digital servo designed for demanding RC applications. Featuring a coreless motor and durable steel gears, this servo delivers up to 500 oz-in of torque at 6V without requiring a high-voltage power supply.

The Plus series incorporates Soft Start technology to reduce sudden startup movement and supports Sanwa SSR compatibility. Its tall case design makes it suitable for applications requiring exceptional steering torque.

Features:

• Brand: Savox

• Part Number: SA1230SGP

• Coreless digital motor

• Heavy-duty steel gear train

• Soft Start technology

• Sanwa SSR compatibility

• Dual ball bearings

• Standard mounting footprint with taller case

• 25-tooth output spline

Specifications:

• Torque at 4.8V: 416.6 oz-in (30 kg-cm)

• Torque at 6.0V: 499.9 oz-in (36 kg-cm)

• Speed at 4.8V: 0.20 sec/60°

• Speed at 6.0V: 0.16 sec/60°

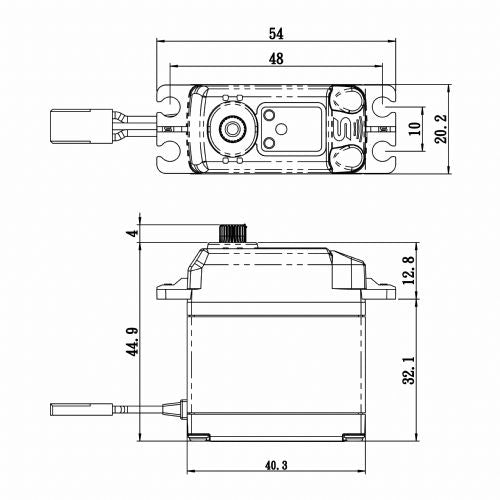

• Dimensions: 40.3 × 20.2 × 44.9 mm

• Weight: 79 g

• Operating voltage: 4.8–6.0V

Applications:

• RC rock crawlers

• Monster trucks

• Large-scale RC aircraft

• Other applications requiring very high torque

Package Includes:

• (1) Savox SA1230SGP digital servo

• Servo arms and mounting hardware

Please verify servo dimensions, voltage compatibility, spline requirements, and available receiver power before ordering.
