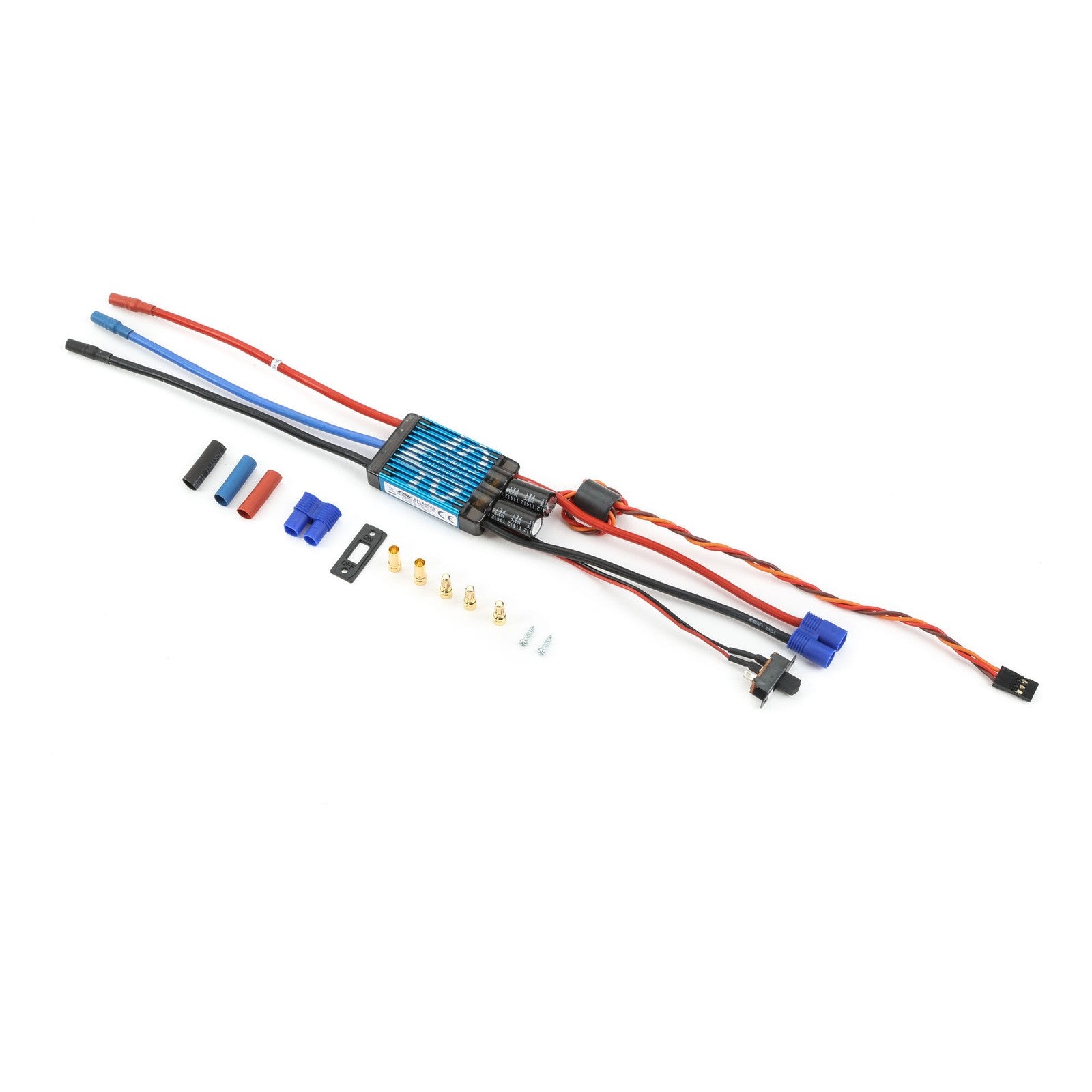

E-Flite EFLA1040B 40-Amp Pro Switch-Mode BEC Brushless ESC (V2)
Sale price
$104.99
Regular price
$120.79
Skip to product information
We use convenient fixed, COMBINED shipping rates .. for BIG Savings!
Product information for this item:
E-flite 40-Amp Pro Switch-Mode BEC Brushless ESC (V2) is a high-quality
sensorless brushless electronic speed control with an integrated
switch-mode BEC that is very lightweight and efficient. It can operate
without the need for a separate receiver battery to power your servos
and receivers, saving you weight and complication.
Features:
Up to 40 amps continuous current with proper air flow and 55 amps continuous current (15 seconds)
5A continuous current, 5V Switch-Mode BEC Circuit (Proper cooling and airflow required)
Stronger BEC for support of most 3-axis stabilization systems
Drive up to 7 analog or 6 digital standard-sized servos with the BEC
3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
Finned heat sinks
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 70% of battery starting voltage
Programmable throttle input range
Programmable soft start for helis and airplanes
Auto motor shut down if signal is lost or there is interference
Programmable timing�5 user-selectable ranges to use with a large variety of brushless motors
Utilizes new smaller Mosfet technology to minimize weight
Radio System Power ON /OFF Switch
Prewired connectors�E-flite EC3 connector on battery input and 3.5mm gold bullet connectors on motor output leads
Specifications:
Continuous Maximum Current: 40A (Proper cooling and airflow required)
Input Voltage: 3�6S Li-Po or 9�18 Ni-MH/Ni-Cd
Input Connector Types: 13 AWG with E-flite EC3 Connector
Output Connector Types: 13 AWG with 3.5mm Gold Bullet Connectors
Momentary Peak Current: 55A (15 sec) (Proper cooling and airflow required)
Length: 68.0mm (2.70 in)
Width: 33.0mm (1.30 in)
Height: 13.0mm (0.50 in)
Weight: 62.0 g (2.20 oz)
